Lab 2.6 - Contextual Access

In this section you will configure Contextual Access for the previously created Application Groups

Task - Configure Contextual Access for adauth_header Group

1. Click Contextual Access from the ribbon

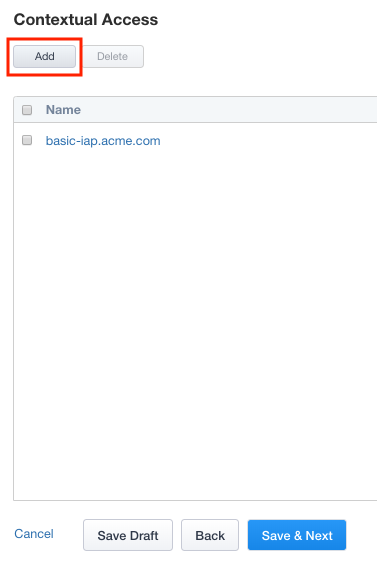

2. Click Add

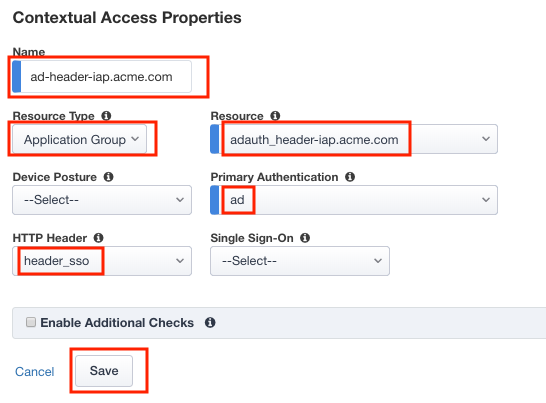

3. Enter Name ad-header-iap.acme.com

4. Select Application Group from the Resource Type dropdown

5. Select adauth_header-iap.acme.com from the Resource dropdown

6. Select ad from the Primary Authentication dropdown

7. Select header_sso from the HTTP_Header dropdown

8. Click Save



Task - Configure Contextual Access for ocspauth_header Group

1. Click Add

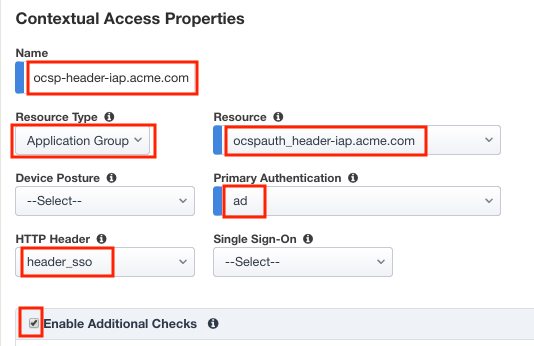

2. Enter Name ocsp-header-iap.acme.com

3. Select Application Group from the Resource Type dropdown

4. Select ocspauth_header-iap.acme.com from the Resource dropdown

5. Select ad from the Primary Authentication dropdown

6. Select header_sso from the HTTP_Header dropdown

7. Check Enable Additional Checks

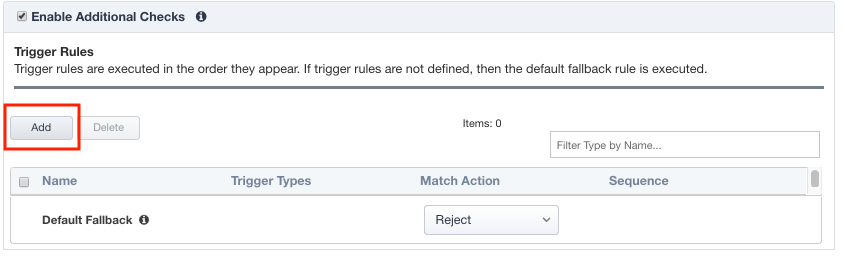

8. Click Add to add a Trigger Rule

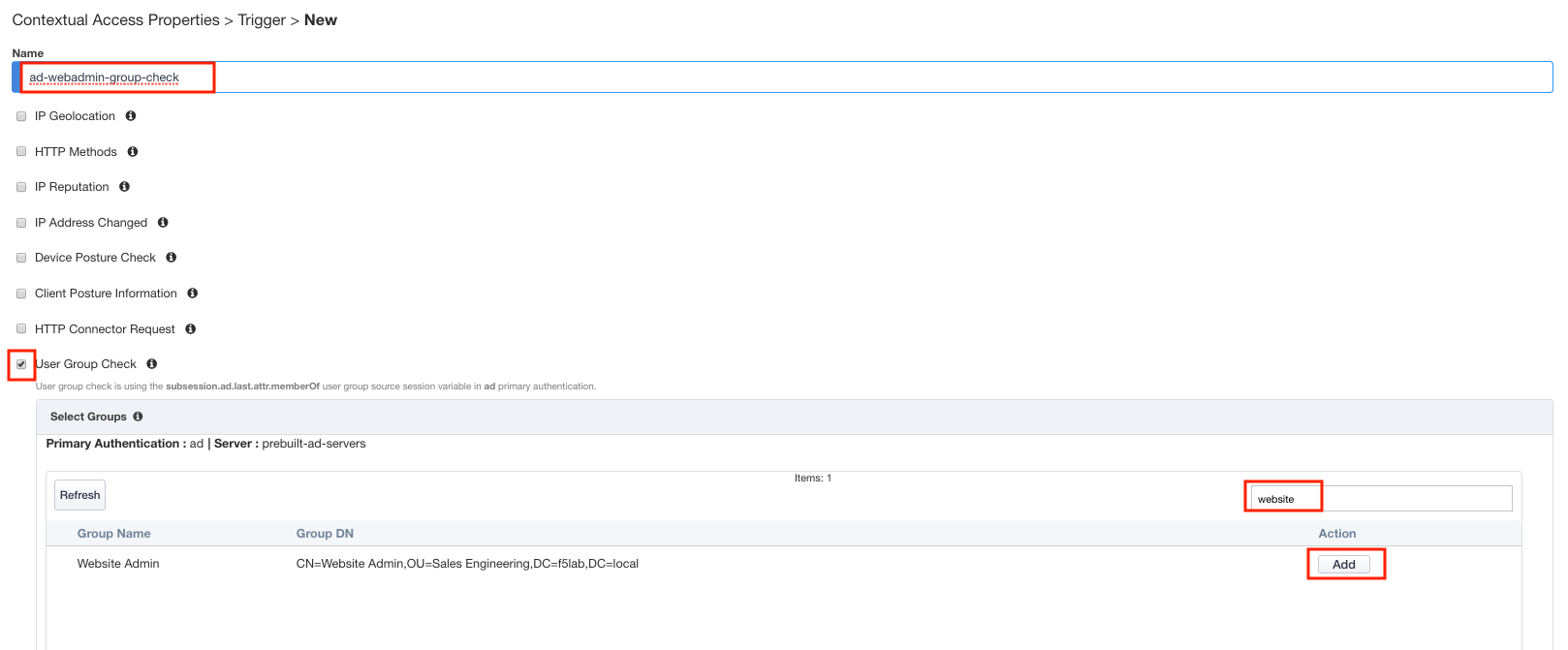

9. Enter Name ad-webadmin-group-check

10. Check User Group Check

11. Locate the Website Admin group

Tip

Try using the filter field to search

1. Click Add under the Action column

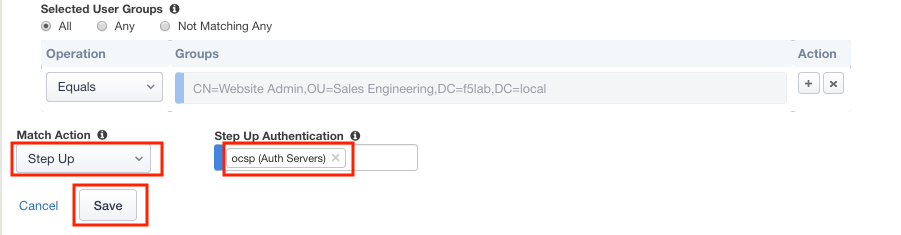

2. Select Step Up from the Match Action dropdown

3. Select ocsp from the Step Up Authentication dropdown

4. Click Save

5. Click Save again to save the Contextual Access Properties for ocsp-header-iap.acme.com

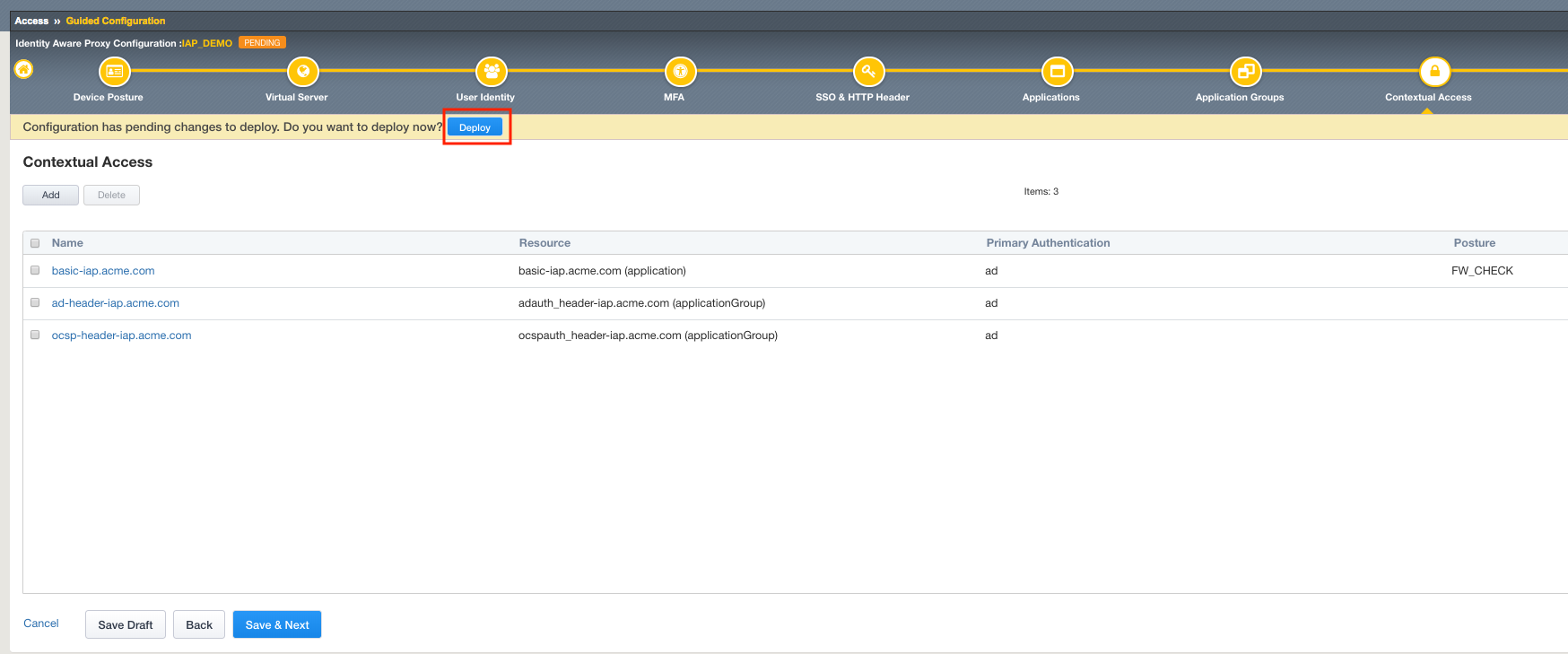

6. Click Deploy located under the ribbon. Deployment will take a few moments.
